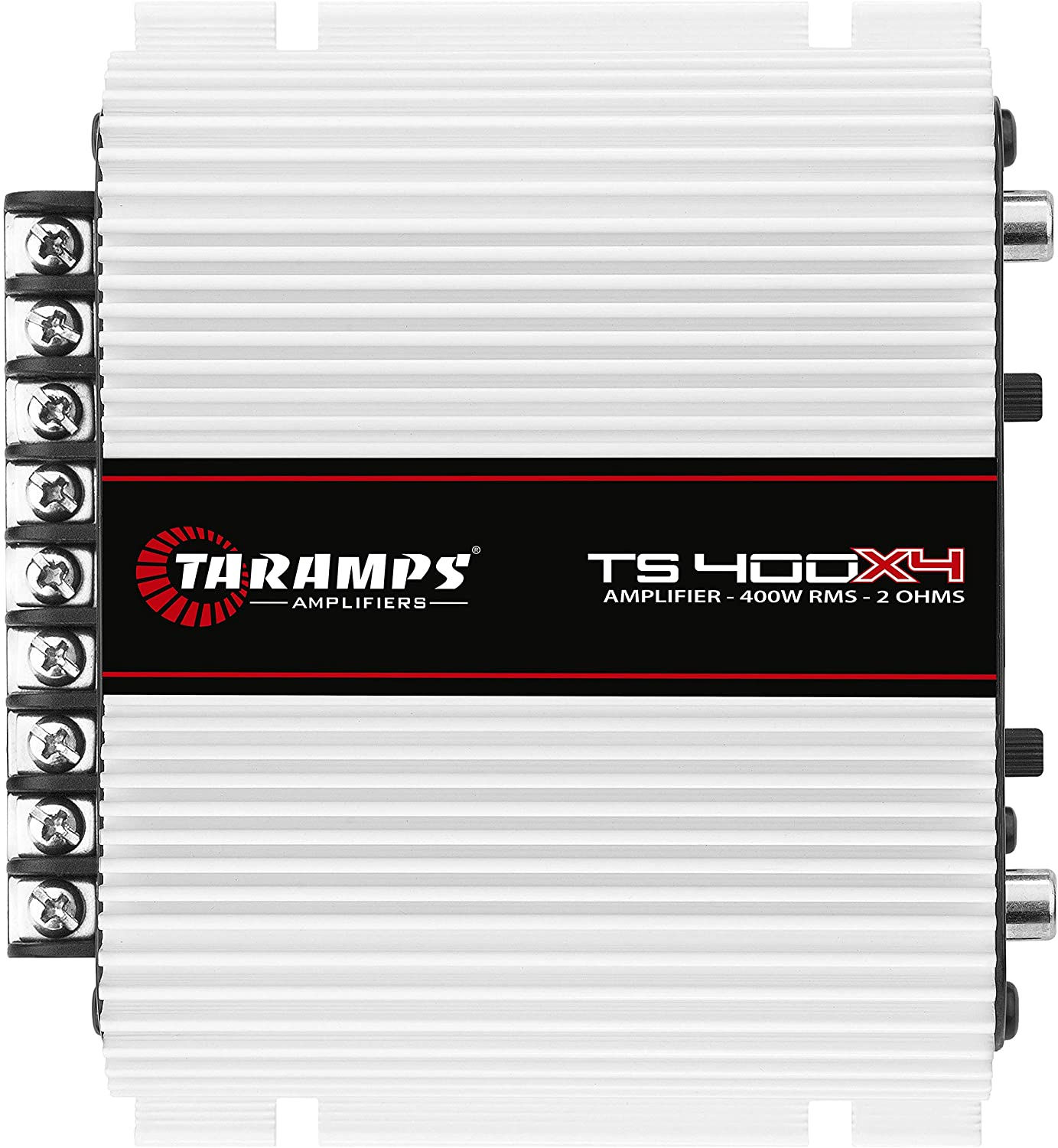

Taramp's TS 400X4 2 Ohms 4 Channel 400 Watts Class D Full Range Amplifier

The TS Series amps by Taramp's are some of the best-seller amps in the world, with a solid reputation for delivering high performance audio with power and zero distortion, in an extremely compact size.

Technical Specs:



  • Number of Channels: 04
  • Maximum Power:
  • @ 13.8 VDC - 2 OHMS - 400 W RMS (4 x 100W RMS)
  • @ 13.8 VDC-4 OHMS - 252 W RMS (4 x 63W RMS)
  • Bridged @ 13.8 VDC - 4 OHMS - 400W RMS (2 x 200W RMS)
  • Input Sensitivity: 200mV (Vol=Max)
  • Signal to Noise Ratio: > 90dB
  • Frequency Response: (Full Range): 18Hz to 30kHz (-1dB)
  • High Pass Crossover (HPF): 90Hz (-12dB / 8th)
  • Low Pass Crossover (LPF): 90Hz (-12dB / 8th)
  • Input Impedance: 22K OHMS
  • Thermal Protection System and Short Output
  • Minimum Supply Voltage: 8 VDC
  • Maximum Supply Voltage: 16 VDC
  • Standby Power: 0.8 Amp.
  • Maximum Musical Power: @ 13.8VDC: 16.5 Amp.
  • Maximum Consumption in Sine Signal: (1kHz) 13.8VDC: 33 Amp.
  • Dimensions (WxDxH): 138 x 49 x 121mm
  • Weight: 0.6kg



Taramp's TS 400X4 2 Ohms 4 Channel 400 Watts Class D Full Range Amplifier

$104.00Price
